Day 4
Day 4
Exercise 1:
Exercise 1:
Insert a new cube
Fasten the blue side of the cube to the origin
Insert a second cube
Fasten the red face of the first cube to the red face of the second cube
Use re-orient primary axis (A) and re-orient secondary axis (B) to make both cubes visible and lineup the white faces
Exercise 2:
Exercise 2:
Insert the Drivetrain Part Studio
Group everything from that part studio together (including the origin cube)
Fasten the origin cube to the origin
Add MAX Swerve modules from MKCAD to the drivetrain
Exercise 3:
Exercise 3:
Go back to your cubes assembly
Change the mate to the following and in Notepad, explain what that type of mate does:
Revolute
Cylindrical
Slider
Planar
Day 5
Day 5
Mock Game: https://docs.google.com/document/d/1PVdiRbPX-PAOvFa_CLu6xQe0Z3BVFSgn1RYdM4h-FzI/edit?usp=sharing
Exercise 1:
Exercise 1:
Go to the Cube Funtime Assembly
Edit the "Fastened 2" mate, using the "Offsets" to have one cube floating 2 inches above the other
Exercise 2:
Exercise 2:
Go to the KrayonCAD Elevator Assembly
Use "Add Part Studio in Context" to add a ramp to the example robot
Exercise 3:
Exercise 3:

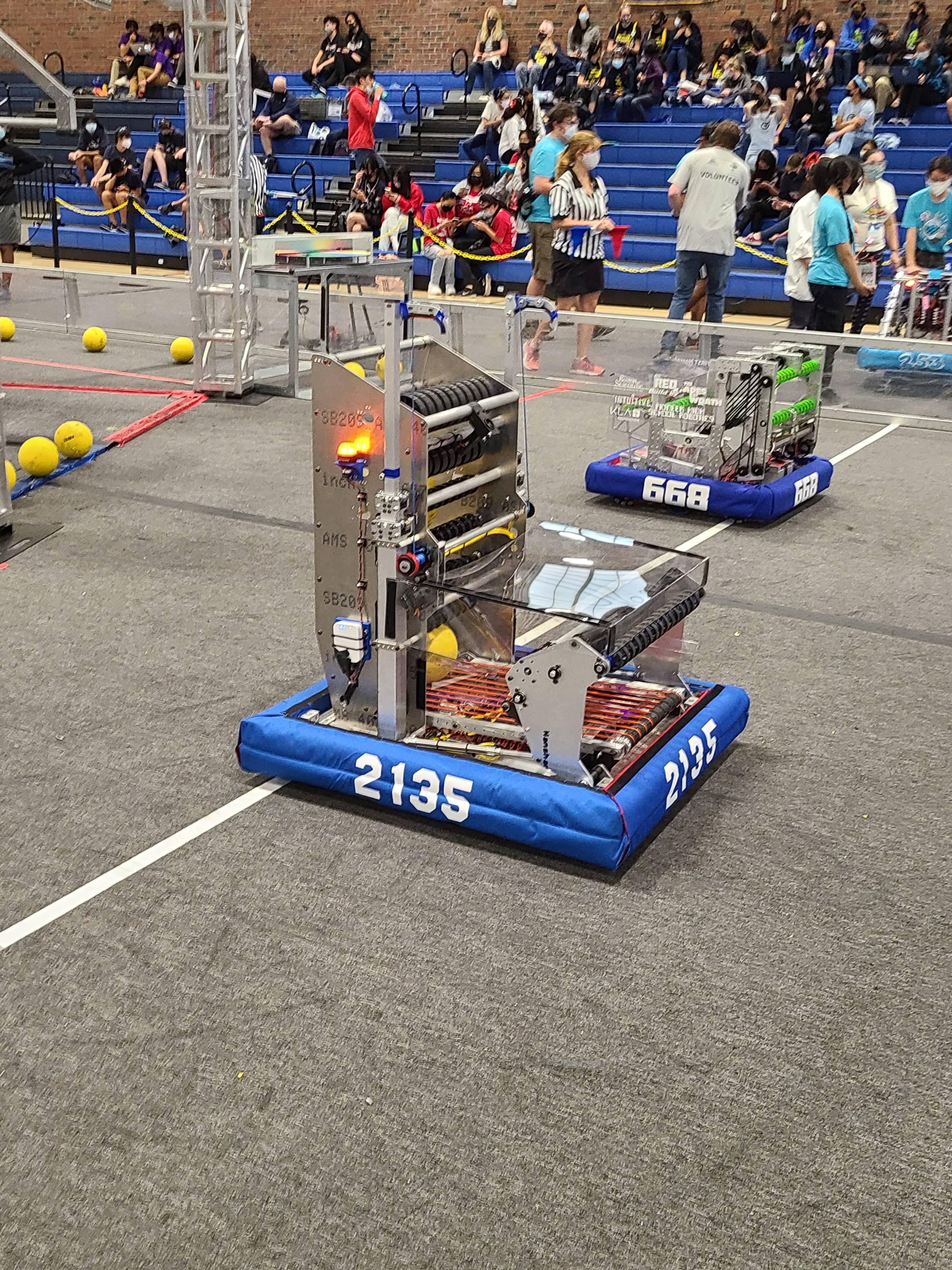

Make a KrayonCAD version of FRC 2135's 2021 robot.
